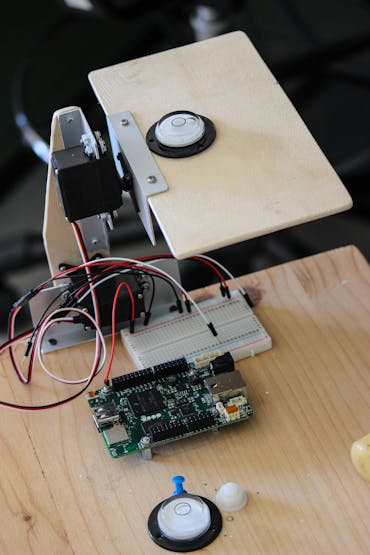

Things used in this project

Hardware components:
Udooneo trasparent
UDOO NEO
×1
Servomotor
×2
12002 04
Breadboard (generic)
×1
Male/Male Jumper Wires
×6
Software apps and online services:
Ide web
Arduino IDE
UDOObuntu 2
MAGUM Library

Schematics

Schematics and circuit diagram

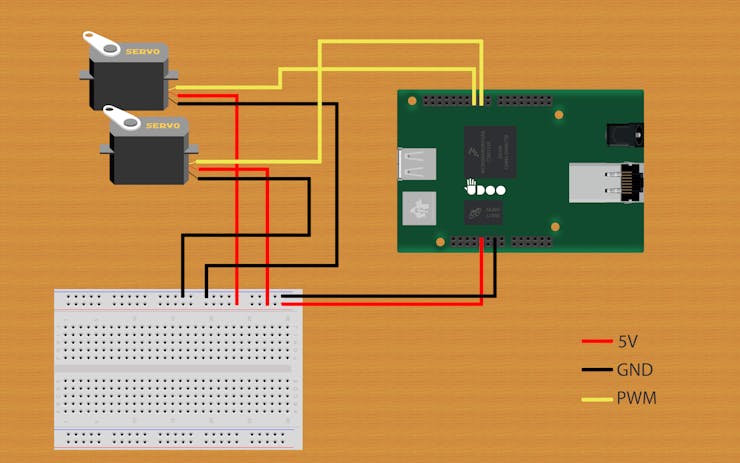

This is the circuit used to connect servomotors to the UDOO Neo board
Schema

Code

Arduino sketchArduino
Works as a static controller and moves the engines
#include <Servo.h>
#include <servo_mqx.h>


// Definition Pins of servos
#define pinBase 10
#define pinTop 9
#define pinSe#include <Servo.h>
#include <servo_mqx.h>


// Definition Pins of servos
#define pinBase 10
#define pinTop 9
#define pinSerial 13

// Creation servo objects to control the servos
Servo servoBase;
Servo servoTop;

// Definition characteristics of servos
int posBase, posTop;            // indicate the positions of the servos
int rangeBase[] = {0, 89, 165}; // indicate the ranges of servos  {minVal,90°,maxVal}, minVal >= 0° , maxVal <=180°
int rangeTop[] = {0, 89, 180};  // minVal should be the angle value when the servos is in 0° position. maxVal should be the angle value when the servos is in 180° position

int flag = 0;

void setup() {
  servoBase.attach(pinBase);          // Set the command pin where the servo is attached
  servoTop.attach(pinTop);
  servoBase.write(rangeBase[1]);      // Set the servos to 90 degrees
  servoTop.write(rangeTop[1]);
  posBase = servoBase.read();         // Get the position of servos
  posTop = servoTop.read();

  Serial.begin(115200);               // Begin serial Communication at 115200 bps
  Serial.print('1');
}

void loop() {
  int Angles[2] ={1000, 1000};
  String string = "";
  String ang1,ang2;
  char input;
  while((Serial.available() > 0) && (flag == 0)) {    // Check if there are data in the buffer and get them Byte by Byte
    input = Serial.read();
    if(input != '|') {                                // the " | " character separate the values of angles
      string = string + input;
    }
    else {
      // Fine primo numero
      flag = 1;
    }
  }
  if(string != "") {
    Angles[0] = string.toInt();                       // Convertion from string to integer
    ang1 = string;

    flag = 0;
    string = "";
  }
  while((Serial.available() > 0) && (flag == 0)) {
    input = Serial.read();
    if(input != '|') {
      string = string + input;
    }
    else {
      // Fine secondo numero
      flag = 1;
    }
  }
  if(string != "") {
    flag = 0;
    Angles[1] = string.toInt();
    ang2 = string;
  }
  if(string != "") {

      servoBase.write(-Angles[0] + rangeBase[1]);
      servoTop.write(-Angles[1] + rangeTop[1]);
      posBase = servoBase.read();                               // Refresh the position variables
      posTop = servoTop.read();
      delay(150);

    Serial.println("1");                                        // Write to the serial the command that permit to send new data from the python script
  }
}
Python scriptPython
Reads the angles from both gyroscope and accelerometer
import serial
from random import randint
import time
from magum import Magum

arduino = serial.Serial(
	port='/dev/ttyMCC',
    baudrate=115200,
    parity=serial.PARITY_NONE,
    stopbits=serial.STOPBITS_ONE,
    bytesize=serial.EIGHTBITS
)
timeout = 0
DT = 0.02 # 20ms

magum = Magum(250,0,2,1)											# Instanzio magum

print "Collegamento Seriale OK"

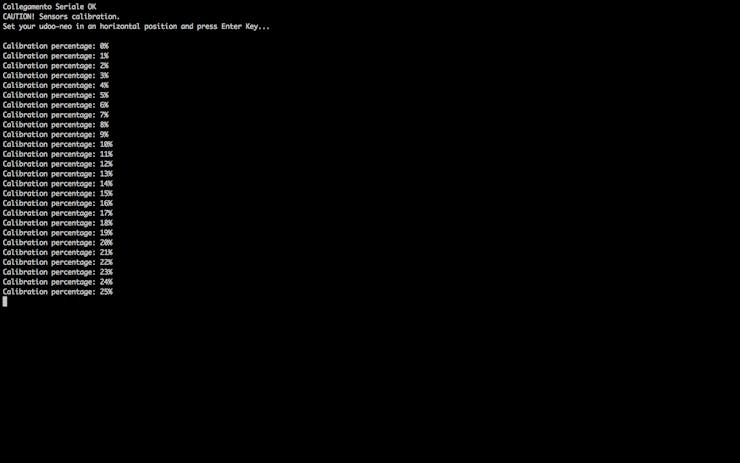

# first of all calibrate the sensor
axisOffset = magum.calibrateSens(1000)

# arduino.close()
# arduino.open()
while True:															# Inizia il ciclo
	try:															# Questo serve solo per chiudere la seriale in caso di ctrl+C
		while timeout < 50:											# Finche' non ho nessun Byte nel buffer e non ho esaurito il numero di tentativi (50)

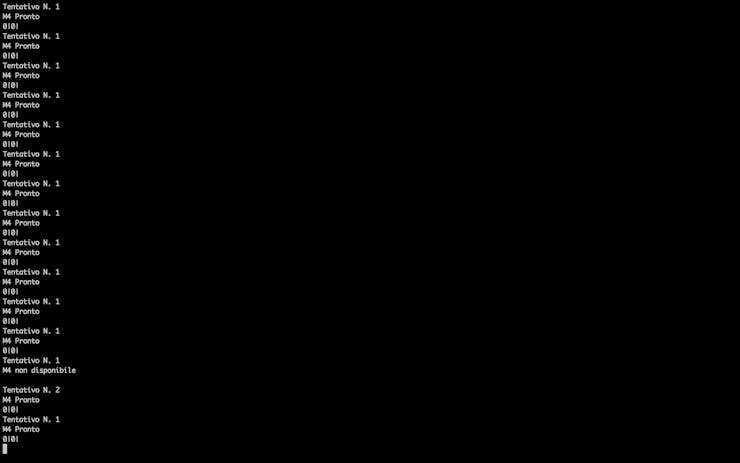

			print "Tentativo N. " + str(timeout + 1)
			textIn = arduino.read()
			if textIn == '1':
				print "M4 Pronto"
				arduino.flushInput()								# Pulisco il buffer in entrata
				timeout = 0
				try:
					cFAngleAxis = magum.compFilter(DT,axisOffset)
				except IOError: #  avoid timeout errors
					pass
				base = 	int(round(cFAngleAxis[1],0))				# Rilevo gli angoli di inclinazione della UDOO
				top = int(round(cFAngleAxis[0],0))
				message = str(base) + '|' + str(top) + '|'			# Costruisco il messaggio da inviare
				print str(message)
				arduino.flushOutput()								# pulisco il buffer in uscita
				time.sleep(.100)
				arduino.write(message)								# invio il messaggio
				time.sleep(.200)
			else:
				print "M4 non disponibile\n"
				timeout += 1
				time.sleep(.100)
		print "Timeout\n"
		arduino.close()												# Chiudo la seriale
		exit(1)
	except KeyboardInterrupt:
		arduino.close()

Credits

Tuxme
Francesco Guerri

Computer engineering at University of Siena. Android developer and graphic designer.

A6eddf0ab707a4bf1c051d79d08a6c97
0rla3

Ingegneria Informatica presso l'Univesità degli Studi di Siena. Web Developer (PHP, Javascript), iOS Developer.
