Things used in this project

Hardware components:
Udooneo trasparent
UDOO NEO
×1
398 09
Adafruit RGB Backlight LCD - 16x2
×1
Omron b3f 1000 image 75px
SparkFun Pushbutton switch 12mm
×1
12002 04
Breadboard (generic)
×1
11026 02
Jumper wires (generic)
×1
Bourns 3362p 1 103lf image 160px
Single Turn Potentiometer- 10k ohms
×1
Mfr 25frf52 10k sml
Resistor 10k ohm
×1
Adafruit industries ada1536 image
Buzzer
×1
Software apps and online services:
Ide web
Arduino IDE

Schematics

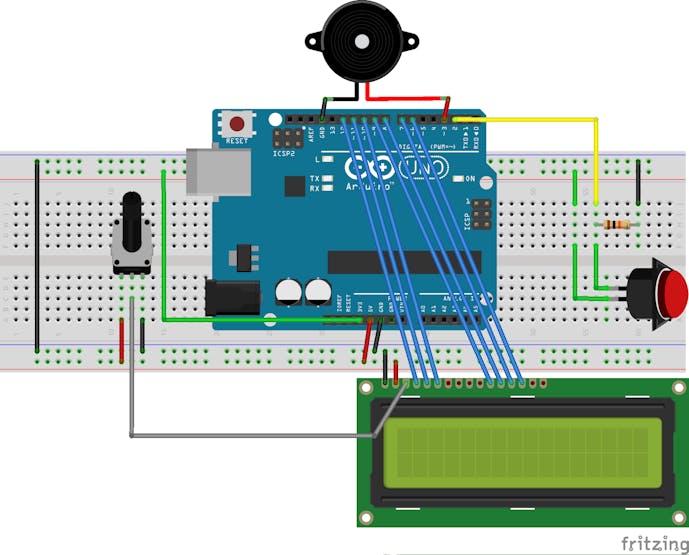

Circuit diagram
I used an Arduino UNO image instead of UDOO NEO

Code

Github
https://github.com/ektor5/ks_neo
